Temperature and Humidity Profiling

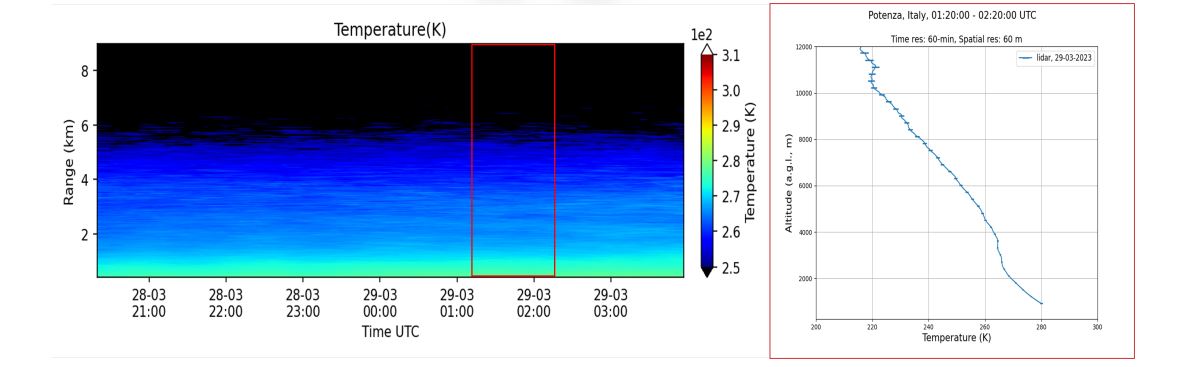

Left: Time evolution of Temperature (K) as measured on 29/03/2023, 20:30-03:30 UTC (nighttime measurement), at Potenza, Italy. Right: 1-hour averaged Temperature vertical profile, with a spatial resolution of 60 m. Terror < 1 K up to 8.5 km. The system can accurately acquire Temperature profiles up to the Tropopause (Laser Energy: 650 mJ, Laser Frequency = 10 Hz).
Detection Parameters:
- Temperature
- Water Vapor mixing ratio and Relative Humidity
- Aerosol Optical Properties (backscatter, extinction, depolarization)
Note: LiDAR is the only ground based remote sensing technique with 24/7 data capability and with a spatial resolution 60-900m, able to offer lower temperature observations, including inversions with high accuracy.
Um mehr über unsere Aerosol-LiDAR Systeme zu erfahren, sprechen Sie mit unseren Expert:innen über Ihre konkrete Anwendung.
